Jaw Crusher

Jaw crusher,which is ideal for the primary and secondary crushering,is widely used in mining,quarry,metallurgy,building,highway,railway,construction waste processing,water conservancy and chenmical industry,etc.It features high reduction ratio,easy operation,simple constryction,repeatable performance,easy maintenance,and low consumption.

The working principle

When the jaw crusher works, the motor drives the eccentric shaft to rotate through the belt pulley, so that the movable jaw moves close to and leaves the fixed jaw periodically, thus crushing, rubbing, grinding and other multiple crushing materials, making the material from large to small, gradually falling down, until discharged from the discharge port.

The performance characteristics

1. Deep crushing cavity, no dead zone, improved feeding capacity and output.

2. gasket type vent adjustment device has a wide range of adjustment, increase the flexibility of the equipment.

3. Safe and reliable lubrication system, convenient replacement of parts and simple maintenance of equipment.

4. Simple structure, low operation cost and low manufacturing cost

5. Wide adjustment range of discharge port can meet the requirements of different users.

6. low noise, less dust.

7. high water, high viscosity of the ore is not easy to plug.

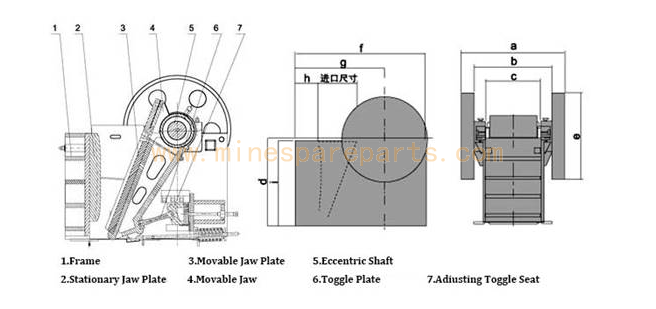

Product structure drawing

显示图片

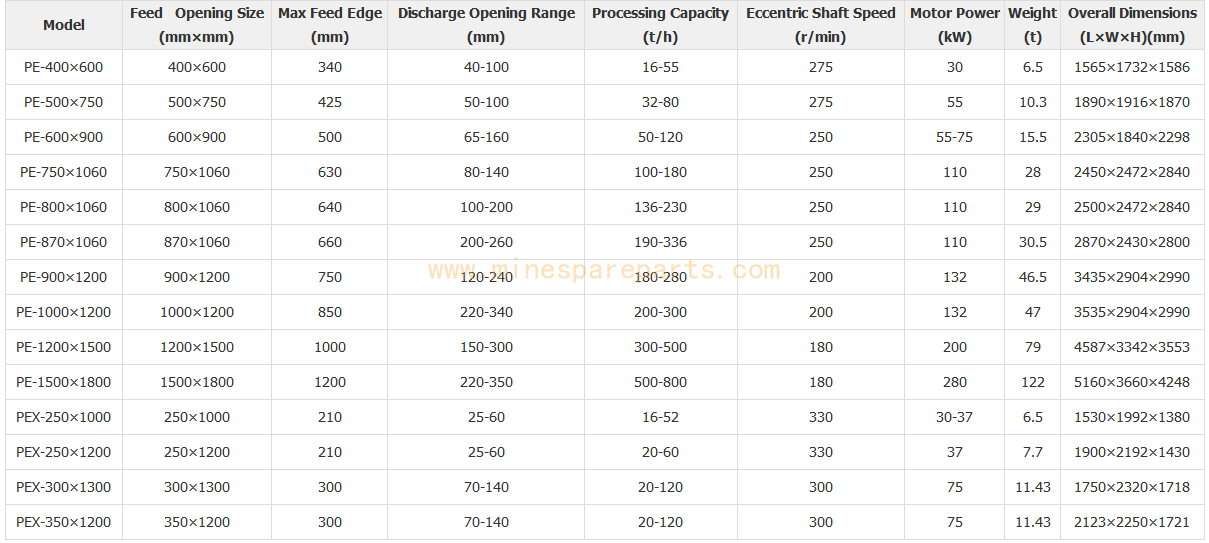

Technical Parameters

显示图片
