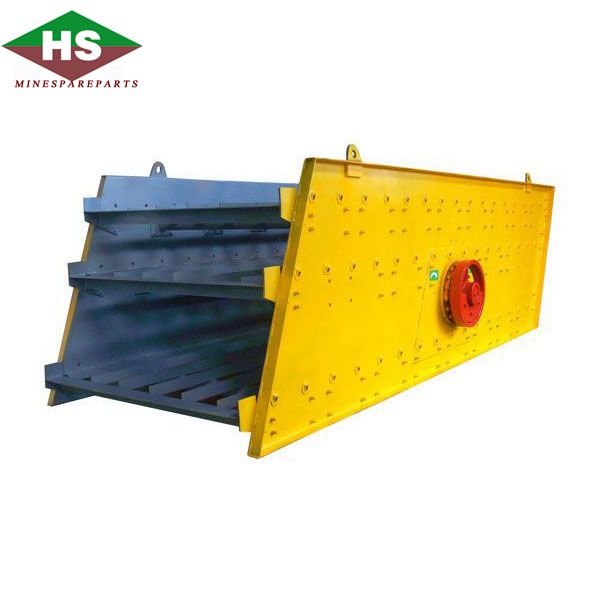

Vibrating Screen

Vibrating Screen  uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.

The working principle

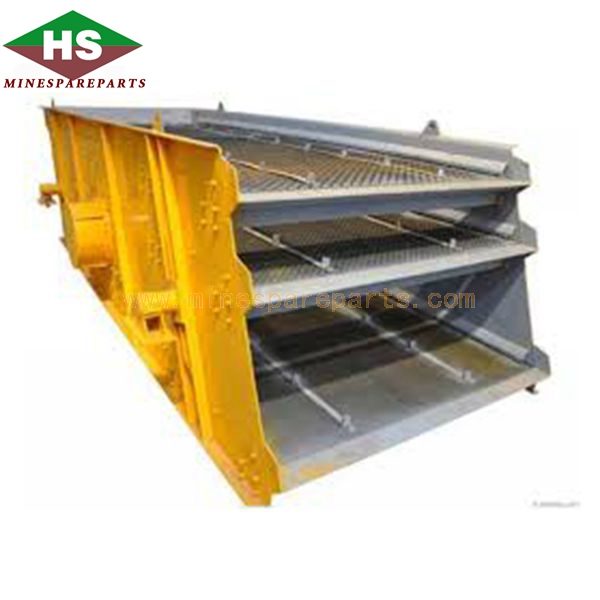

Vibrating screen is mainly composed of screen box, screen mesh, vibrator and damping spring.The vibrator is installed on the side plate of the screen box, and is driven by the motor through the triangle belt rotation, generating centrifugal inertia force, forcing the screen box vibration.

Vibrating screen application:

It is Widely used in plastics, abrasive, chemical, pharmaceutical, building materials

Vibrating screen main Technical Parameters

Model

Layer

Dimension

Size(mm)

Max. Feed

Size(mm)

Capacity(t/h)

Vibrating Frequ

Ency(r/min)

Power

(kw)

Double Swing

(mm)

3YK1235

3

1200*3500

400

60-180

870

5.5

5-9

2YK1545

2

1500*4500

400

120-275

870

15

5-9

3YK1545

3

1500*4500

400

120-275

870

15

5-9

3YK1548

4

1500*4800

400

120-275

870

15

5-9

4YK1548

2

1500*4800

400

200-275

870

15

5-9

3YK1848

3

1800*4800

400

200-330

870

18.5

5-9

4YK1848

4

1800*4800

400

250-330

870

18.5

5-9

3YK1860

2

1800*6000

400

250-586

870

22

5-9

4YK1860

3

1800*6000

400

300-586

870

22-30

5-9

3YK2060

4

2000*6000

400

300-720

730

37

5-9

4YK2060

2

2000*6000

400

400-720

730

30-37

5-9

3YK2460

3

2400*6000

400

400-810

770

37

5-9

4YK2460

1

2400*6000

400

450-810

770

37

5-9
